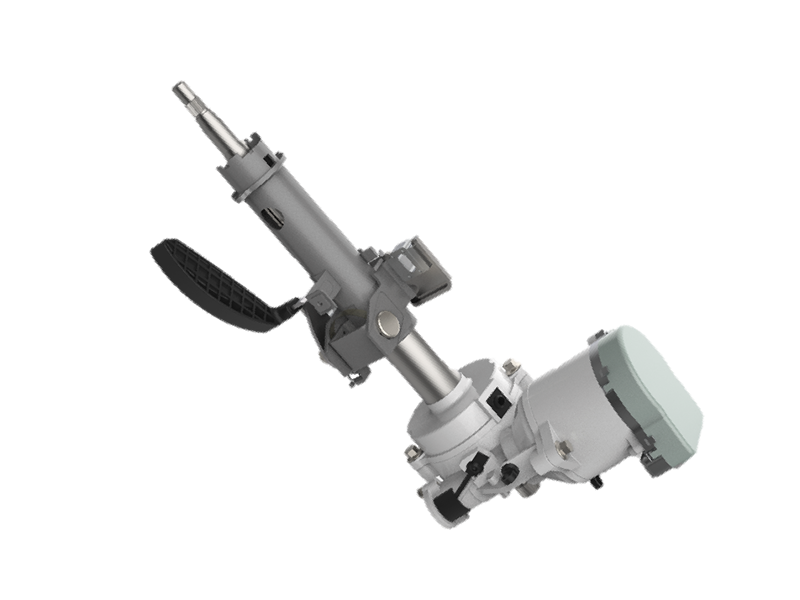

Tubular Electric Power Steering (C-EPS)

Introduction to C-EPS

High-performance platform C-EPS products, functional safety level ASIL-D.

Product advantages

Excellent performance: brushless DC motor solution, fast response, high control accuracy, smooth feel (hand force fluctuation <0.2Nm)
Compact structure: Electric control unit (Powerpack) adopts integrated scheme, compact structure and convenient layout.
Safe and reliable: Using 32-bit MCU (with lock step core), support ASIL-D functional safety level.
High cost performance: parts homemade rate, localization rate is high, with a very high cost performance, moped enterprises to reduce costs.
Rich functions: Supports rich application layer algorithm functions and can be customized according to customer needs.

Product structure diagram

For product illustration only, please refer to different models for specific design

Function

Item	Data
Brushless CEPS with electronic control unit	One-piece PPK
Worm gear ratio	20.5, 21
Output torque	85Nm, 92Nm
Rack force	8.5 kN ~ 9.7 kN
Regulating mechanism	Two-way adjustment, four-way adjustment
Front axle load	600~1000kg
Automatic driving level	< L2
Applicable vehicle type	Micro/light commercial vehicles, compact cars, SUVs
