Passenger car control system

Trinova can provide drive-by-wire chassis systems for passenger car types, including brake-by-wire systems, steering-by-wire systems and drive-by-wire systems. The brake-by-wire system mainly uses TBS, ESC and EPB to realize multiple redundant backup and precise braking solutions. The steering-by-wire system uses dual-motor safe redundant steering system as the key component, which can realize precise steering angle control. The drive-by-wire system mainly Accurate speed control is achieved by means of signal simulation.

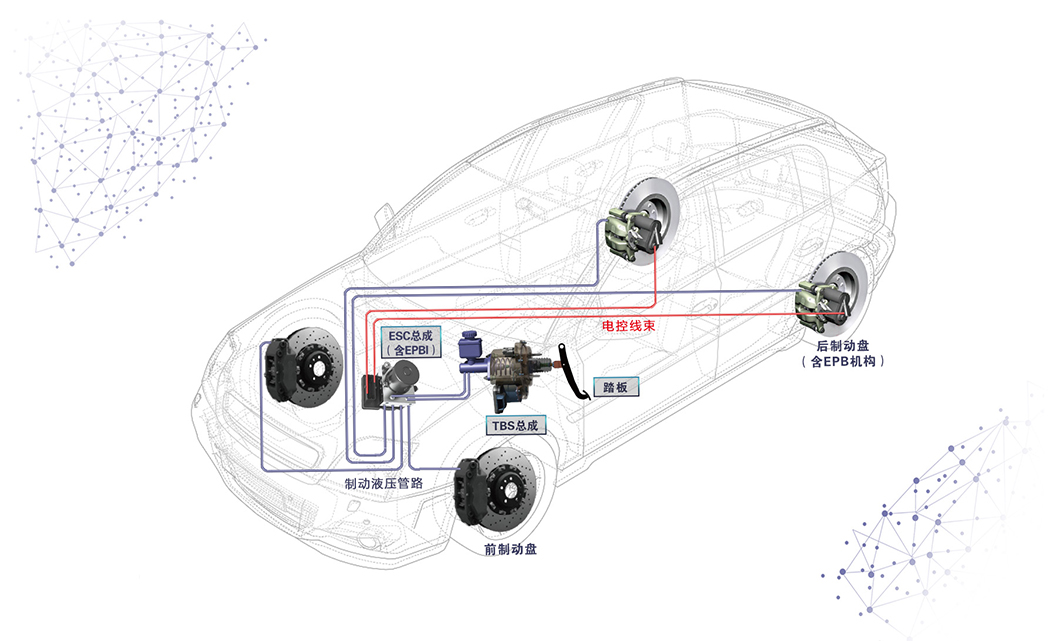

Multiple redundant brake-by-wire system

Product advantages

TBS active braking + ESC backup braking + EPB backup braking + driver backup braking: constitute multiple redundant mechanisms to meet the safety requirements of autonomous driving above L3 level；
Electric control brake booster system TBS: semi-decoupled technical solution, with three functions of brake booster, brake-by-wire, and support for braking energy recovery, 10MPa pressure build-up time 250ms；
Electronic stability control system ESC: It has more than 10 functions such as ABS, TCS, AYC, etc., and the brake-by-wire supports ADAS technical requirements；
Electronically controlled parking brake system EPB: The electronic control system is integrated in the ESC controller and controls the EPB actuator through the ESC.

Performance

Performance		Index value
10MPa Pressure build time	TBS	≤250ms
	ESC	≤600ms
	ESC+TBS	≤200ms
Brake response time		≤100ms
Brake pressure control accuracy		≤0.2MPa
Brake deceleration control accuracy		≤0.2m/s2
Maximum braking deceleration (high attachment)		-9m/s2
System switching time on failure		≤100ms
Control and Feedback Cycles		10ms
L3/L4 autonomous driving function		support

EPS Steer-by-Wire System

天津英創彙智汽車技術有限公司

Performance

Interface Type	Quantity
Steering wheel angle range	±700deg
Steering wheel maximum speed	540deg/s
Steering wheel angle control accuracy	≤1deg
Steering response time	≤100ms
Control and Feedback Cycles	10ms
Steering wheel angle resolution	0.1deg
Driver Intervention Recognition Time	≤100ms
Driving mode switching time	≤100ms
L3/L4 autonomous driving function	support

Wire-controlled drive, wire-controlled gear, wire-controlled lighting

天津英創彙智汽車技術有限公司

Performance

Interface Type	Quantity	Remark
Digital input	15	High and low configurable
Analog input	10	12-bit acquisition
Pulse input	4	Hysteresis voltage 400mV
5V output	6	100mA max
12V output	2	100mA max
Analog output	2	Accuracy 0.05V
High side output	8	10A max
low side output	5	2A max
Motor control output	2	50A max
Sent output	2	Configurable protocol
CAN communication	3	Configurable
Power input	1	9-36V
