Sensor

Introduction to Sensors

Trinova can provide wheel speed sensors and angle sensors, which can support the collection of vehicle wheel speed signals and steering wheel angle sensors, and can support vehicles to realize ABS function and ESC function, etc.

Main image

天津英創彙智汽車技術有限公司

Features

Form

Features

Magnetoelectric

simple organization

Not afraid of mud

Hall type

good signal stability

high frequency response

Strong anti-interference ability

Signal strength does not vary with vehicle speed

magnetoelectric

Passive Wheel Speed Sensor Specifications
resistance	1.1~1.8kohm at 25℃
Inductance	（@1kHz）： [150， 1000] mH
Signal characteristics	When the signal is 20Hz, the signal output amplitude (peak-to-peak value) is greater than 0.2V
Ring gear fit	Effective working air gap requirements 0.6± 0.3mm
working frequency	1-2500Hz

Hall type

Active Wheel Speed Sensor Specifications
Supply voltage	5~16V
Signal rise and fall time	1.5μs max
Signal characteristics	Output low current 5.9-8.4mA, Output high current 11.8-16.8mA
Ring gear fit	Effective working air gap requirements 0.7± 0.5mm
working frequency	1-2500Hz

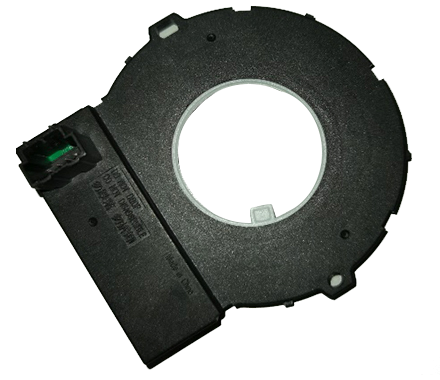

Angle sensor

天津英創彙智汽車技術有限公司

Performance item	Index
Supply voltage	7~16V
Operating temperature	-40~85℃
Output angle range	±780°
Output angular velocity range	0~1016°/s
Angular Accuracy	±2.5°
Zero reproduction	±0.5°
Angular resolution	0.1°
Angular velocity resolution	4°/s
Signal output method	CAN
Signal transmission cycle	10ms
